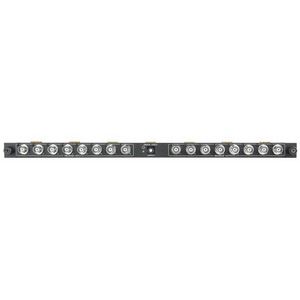

Плата HD-SDI EXTRON SMX 88 HD-SDI, 70-597-03

8x8 Multi-Rate SDI; 1 Slot ПАРАМЕТРЫ - Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI and SDI — Complies with SMPTE 259M, ITU-R BT.601, SMPTE 292M, ITU-R BT.1120, and SMPTE 424M standards. - Data rates from 143 Mbps to 2.97 Gbps — Supports SDI, HD-SDI, and 3G-SDI digital video signals. - Optimized for SMPTE 372M dual-link HD-SDI — Zero skew design pairs adjacent input and output connectors for superb performance with very high data rate signals, even over long distances. - Passes embedded audio, ancillary ID and metadata information, and SD/HD-SDTI digital video signals — Passes all data allowed within published SMPTE and ITU digital video standards, including embedded audio, ancillary ID and metadata information, and SDTI (SMPTE 305M) and HD-SDTI (SMPTE 348M) digital video signals. - Input equalization — Equalizes input signals 300 feet (100 m) or more on Extron RG6 or equivalent cable. - Output reclocking — Reclocks and drives output signals 300 feet (100 m) or more on Extron RG6 or equivalent cable. - User-selectable reclocking modes — Automatically reclocks SMPTE and ITU standard serial digital video rates. Reclockers can also be set to a signal, predetermined SMPTE/ITU standard data rate for optimum switching performance, or bypassed to allow for switching nonstandard data rates. - DSVP™ - Digital Sync Validation Processing — Polls inputs and outputs to verify data rates. DSVP then transmits the information to the user through the SMX Frame's Ethernet or serial ports.
