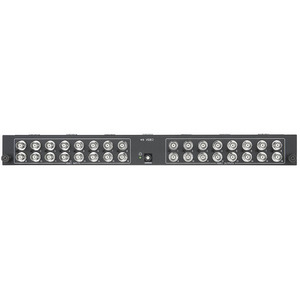

Плата CV широкополосная EXTRON SMX 1616 WB, 70-594-04

16x16 Wideband (BNC); 2 Slots ПАРАМЕТРЫ - 400 MHz (-3dB) RGB video bandwidth — Designed for routing most common high resolution computer-video rates without signal degradation. SMX Wideband Matrix Switcher Boards provide a minimum 400 MHz (-3dB) of RGB video bandwidth at full performance capability when one input drives all outputs. - Triple Action Switching™ for RGB Delay — Blanks the screen when switching to a new source The new sync signals precede the RGB signals, so there is no glitch shown during the transition. The time delay between the RGB and sync signals is adjustable up to five seconds through the SMX Frame's front panel, Ethernet, or serial control. - Signal compatibility — All models are fully compatible with RGB, RGsB, HDTV, component video, S-video, and composite video signals. - Channel to channel isolation — Provides excellent isolation between channels and extremely low electromagnetic emissions, perfect for minimizing signal leakage in high security or government environments. - Buffered I/O — Each input and output is individually buffered to provide maximum performance and virtually no crosstalk or signal interference between channels.
