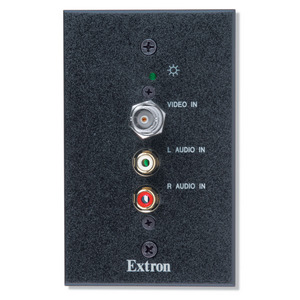

Усилитель CV + аудио EXTRON CVEQ1 WM, черный, 60-435-12

CVEQ1 AAP and CVEQ1 WM Активный интерфейс композитного видео и аудио с усилением, компенсацией и возможностью монтажа на стену Параметры •Inputs: Female BNC and RCA connectors •Outputs: Female BNC and captive screw connector •185 MHz (-3 dB) video bandwidth •Compatible with NTSC, PAL, SECAM, and stereo audio •Peaking/equalization and gain controls •Active audio buffering •Wall mount and AAP models •AAP models install in products that accept a double space AAP - Architectural Adapter Plate •WM models install in a one-gang wall box •Audio response: 20 Hz to 20 kHz (± 0.05 dB) •Available in black, white, or RAL9010 white •External universal energy efficient power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. When an application involves multiple composite video signals being run a variety of distances, individual signal adjustments are required to deliver signals of equivalent signal strength to each display. These types of applications require a separate equalizer for each signal. The CVEQ1 AAP and CVEQ1 WM drive video signals through up to 1,000 feet (300 meters) of MHR or equivalent cable. The CVEQ1 AAP is a stand-alone AAP - Architectural Adapter Plate. For discreet architectural integration, the CVEQ1 AAP is wall- or furniture-mountable, and the standard faceplate may be easily replaced by a custom faceplate. As an alternative to wall-mounting configuration, the CVEQ1 WM is a one-gang wall plate version of the CVEQ1 AAP. The CVEQ1 WM requires a 2-inch deep electrical box.
