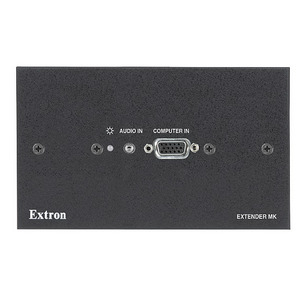

Extender MK
VGA and Audio Line Driver for MK Electric Wall Boxes
Параметры
•Inputs: Female 15-pin HD and 3.5 mm mini stereo jack
•Outputs: Female BNC and captive screw connector
•300 MHz (-3 dB) RGB video bandwidth
•Compatible with VGA-QXGA resolutions
•Three-position peaking/gain control helps maintain video signal integrity over long cable runs
•Designed for mounting in a two-gang MK - MK Electric type British Standard electrical wall box
•Active audio buffering converts unbalanced PC audio to balanced line level audio
•Restores low level sync to TTL level
•Dual color LED power indicator
•ID bits terminated on pins 4 and 11
•External universal energy efficient power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
The Extron Extender MK is a one input, one buffered output line driver for sending high resolution VGA–QXGA and audio signals up to 250 feet (75 m) through high quality cable, such as the Extron MHR-5 Mini High Resolution Cable.
The Extender MK also restores the low level sync voltages found on many laptops to normal TTL levels. This sync restoration prepares the signals for long cable runs and offers enhanced compatibility with a wide range of computers, display devices, and cable types.
Active audio buffering allows unbalanced PC audio to be converted to balanced line level stereo audio, eliminating noise usually associated with unbalanced audio when distributed over long cable runs.
For simple and versatile connections, video output is on five female BNCs on a three-inch (8 cm) pigtail, while audio signals are output on a captive screw connector. A 100-240VAC external power supply is included.
