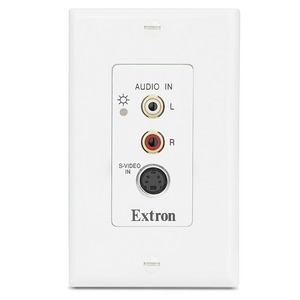

Усилитель S-Video + аудио EXTRON SVEQ 100 D, 60-868-01

SVEQ 100 D S-Video and Audio Line Driver with Gain and Equalization - Decora® Wallplate Параметры •Drives S-video up to 1,000 feet (300 meters) on Extron MHR or equivalent cable •Drives audio up to 1,000 feet (300 meters) on Extron Shielded Twisted Pair or equivalent cable •Independent gain and EQ adjustment •Selectable audio output •Active audio buffering •Quad standard for worldwide compatibility •Mounts in an included Decora-style wall plate •Comes standard with black and white face plates and trim plates •External universal energy efficient power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs The SVEQ 100 D features independent gain and EQ adjustments, which compensate for signal losses due to long cable runs, and offers optimum signal quality regardless of cable length. The gain control allows for brightness adjustment by varying the overall voltage of the signal. With the SVEQ 100 D, gain for the luminance and chrominance channels is separately controlled. The EQ control helps maintain sharpness and high frequency detail. The SVEQ 100 D features active audio buffering-which converts unbalanced audio signals to balanced line level and simplifies integration of consumer-grade A/V products in commercial or professional-grade systems. Balanced audio signals are less susceptible to noise, and due to the inherent +6 dB signal gain, allow for cable runs up to 1,000 feet (300 meters). The SVEQ 100 D comes standard with both black and white face plates and trim plates.
