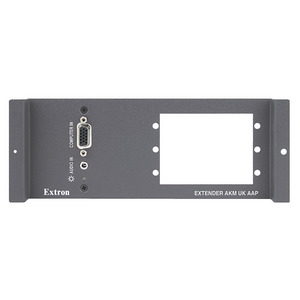

Интерфейс EXTRON AAP. усилитель VGA + аудио Extender AKM AAP Ackermann, 60-627-02

Extender AKM AAP VGA and Audio Line Driver for Ackermann Floor Boxes Параметры •Inputs: Female 15-pin HD and 3.5 mm mini stereo jack •Outputs: Female BNC and captive screw connector •300 MHz (-3 dB) RGB video bandwidth •Compatible with VGA-QXGA resolutions •Three-position peaking/gain control helps maintain video signal integrity over long cable runs •Active PC audio buffering converts unbalanced PC audio to balanced line level audio •Restores low level sync to TTL level •ID bits terminated on pins 4 and 11 •Dual color LED power indicator provides power and signal presence indication •Opening for up to three single space AAP - Architectural Adapter Plates •Designed for installation in Ackermann CRX 4090 and CRX 4120 floor boxes — Floor box sold separately. •External universal energy efficient power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. The Extron Extender AKM AAP is a one input, one buffered output VGA and audio line driver that includes three single space AAP - Architectural Adapter Plate openings. It is designed to install in an Ackermann floor box. The Extender Series products provide video amplification and peaking to compensate for the voltage losses and high frequency attenuation that normally occur in long cable runs. A three position dip switch lets the installer select the appropriate signal boost for various cable lengths, providing a more detailed image with greater contrast. Extenders also restore the low level sync voltages found on many laptops (as low as two volts) to normal TTL levels. This sync restoration prepares the signals to run down long cable runs and offers enhanced compatibility with a wide range of computers, display
