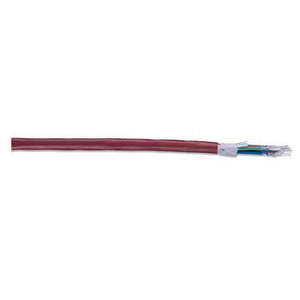

Кабель коаксиальный 75 Ом многожильный EXTRON MHRHF-5/500 (бухта 150м), 22-126-02

MHRHF-5 Five Conductor MHR - Mini High Resolution Halogen-Free Cable Параметры • International Bulk Cable for use in Europe • Five 26 AWG, 75 ohm coaxial conductors in a single jacket • High resolution video signal distribution • LSFOH Low Smoke and Fumes Zero Halogen jacket meets IEC flame, smoke, & corrosivity tests • Spools of 150 meters & 300 meters The Extron MHRHF-5 Cable is a five conductor coaxial cable wrapped in a halogen-free jacket. The MHRHF-5 Halogen-Free Cable is a LSFOH - Low Smoke & Fumes Zero Halogen cable that passes the IEC 332-3 flame test, the IEC 61034 smoke test, and the IEC 754-1 corrosivity test, so it is ideal for meeting specific European safety code requirements. Applications for this cable include underground tunnel construction and railway environments where a primary concern is the introduction of contaminants into the air in the event of a fire. MHRHF-5 Halogen-Free Cable is ideal for applications using RGB signals, such as routing computer-video signals via interfaces, switchers, or distribution amplifiers to projectors or monitors. This cable is easier to pull than multiple, single-BNC cables. The MHRHF-5 Halogen-Free Cable carries red, green, blue, and separate horizontal and vertical sync on five conductors. Each conductor is a 26 AWG, 75 ohm, coaxial conductor, color-coded, and wrapped in a single jacket.
