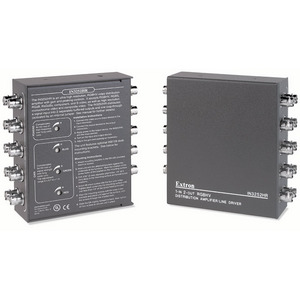

Усилитель-распределитель RGBHV 1x2 EXTRON IN3252HR, 60-681-01

The Extron IN3252HR is a high performance RGBHV distribution amplifier. This DA includes one input and two outputs on BNC connectors. A video loop-through output on five BNC connectors provides a passive loop-through signal. This enables the ability to loop through to additional amplifiers to create a larger DA system or to drive a local monitor. The IN3252HR features individual gain controls for red, green, and blue, which allows for gray scale adjustment and boosts the signal to compensate for the losses in level caused by lengthy cable runs. Proper gain control adjustment can improve image contrast. A single RGB peaking/sharpness adjustment compensates for high frequency loss. The IN3252HR offers flexible video distribution/line driving capabilities to suit a wide variety of applications including boardrooms, training facilities, home theater, command and control centers, and rental and staging environments. The IN3252HR is housed in a compact and durable metal enclosure, and is surface-mountable using optional L-brackets, part # 70-490-01. Функции •Input: One set of female BNC connectors •Outputs: Two sets of female BNC connectors plus one set for passive input loop-through •400 MHz (-3dB) video bandwidth, fully loaded •Compatible with RGBHV, RGBS, RGsB, RsGsBs, component, high resolution monochrome video, S-video, and composite video signals •Gain and peaking/sharpness adjustments •Video loop-through •Durable, metal enclosure •Surface mountable using optional L-brackets, part # 70-490-01 •External universal power supply included, replacement part # 70-777-01
