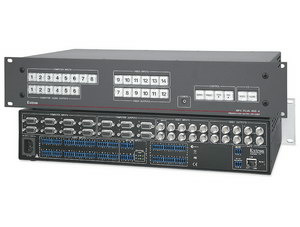

Коммутатор презентационный EXTRON MPX Plus 866 A, 60-796-01

The MPX Plus 866 A ProDSP Media Presentation Matrix Switcher is the A/V industry’s first matrix switcher to incorporate a powerful 32/64-bit floating point DSP engine for complete A/V signal routing and audio control. Extron ProDSP is loaded with powerful tools to control level, dynamics, filters, delay, ducking, loudness, and feedback suppression. ProDSP is managed by the intuitive DSP Configurator™ Software, which also provides for configuration of four matrix switchers: an 8x6 VGA switcher, 6x6 video switcher for composite video and S-video, 14x6 stereo audio switcher, and a 4x6 mic/line audio matrix mixer. The MPX Plus 866 A is a complete, one-box solution that eliminates the need for outboard audio DSP equipment when integrating video and audio in a wide range of common A/V presentation applications. Extron’s exclusive ProDSP is engineered from the ground up using a powerful 32/64-bit floating point DSP engine and 24-bit audio converters with 48 kHz sampling. Audio designers and system installers can access the power and flexibility of ProDSP using the DSP Configurator Software, a PC-based application that provides an intuitive Graphical User Environment for access to all audio processing, A/V matrix switching ties, and audio matrix mixing from a single screen. Modern courtrooms, lecture halls, and auditoriums have multiple sources that need to be routed to multiple displays. One of the primary advantages of the MPX Plus 866 A is that it can independently route high resolution computer or component video signals, and low-resolution video signals, as well as audio. This means that there is no need for a separate scaler and audio switcher to accommodate different signal types. In any A/V environment, audio signal management is crucial to the overall quality of the presentation. The MPX Plus 866 A includes a 14x6 audio switcher, which allows audio to follow video, or be switched independently from any video group. The 4x6 microphone/line audio matrix mixer fea
